Overview

A trimtab reduces the energy needed to help 'steer' the main steering system. It is a metaphor individuals can use to steer their own usefulness within a larger system.

The Trim Tab

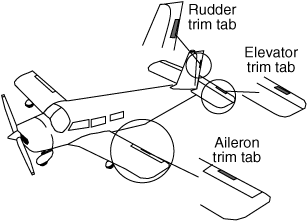

A trim tab is a small steering surface that adjoins the trailing edge of a larger steering surface on a boat or aircraft (see the black rectangles on the above sketch). These are used to 'trim' the controls - i.e. to compensate for hydrodynamic or aerodynamic fluctuations. Without a trim tab the control surface would move around because of changes in the speed of the vessel, or because of turbulence, etc.

A well-adjusted trim tab can reduce or remove the need for any manual force required to maintain a given position. Even when a given course is set and left in one position there may be a force needed to maintain the steering position of the wheels, etc.. By stabilising the boat or aircraft within a particular course or orientation the pilot does not need to apply a constant control force. When the angle of the tab is adjusted, relative to the larger surface, this adjusts the neutral or resting position of the main control surface.
bucky_fuller.jpg Bucky-gravestone-trimtab-1.jpg
Buckminster Fuller saw the trim tab as a symbol of his role and influence as an innovator

"...thinking about what one little man could do. Think of the Queen Mary—the whole ship goes by and then comes the rudder. And there's a tiny thing at the edge of the rudder called a trim tab. It's a miniature rudder. Just moving the little trim tab builds a low pressure that pulls the rudder around. Takes almost no effort at all. So I said that the little individual can be a trim tab. Society thinks it's going right by you, that it's left you altogether. But if you're doing dynamic things mentally, the fact is that you can just put your foot out like that and the whole big ship of state is going to go. So I said, "call me Trim Tab".
— Buckminster Fuller

Steering systems

Scooter
At a systems level the principle behind steering ships is the same for all vehicles, whether they are scooters, boats or hang-gliders. All use feedback from the pilot's/driver's observation of whether the craft is on course or not. This is a corrective process, in which feedback from observation of the craft's course is used to adjust the directional setting of the wheels, sails, or rudder, etc. For example, if the vehicle is travelling too far to the left, the steerer will adjust the steering path more to the right, and vice versa. Because of the reversal process, this is called negative feedback. On a plane (see above), despite their different names, the rudder, elevator and aileron all do the same job, aerodynamically speaking. They control the direction of the wing to which they are attached.
ship-rudder-1.jpg ship-rudder.jpg Ship-rudder-2.jpg

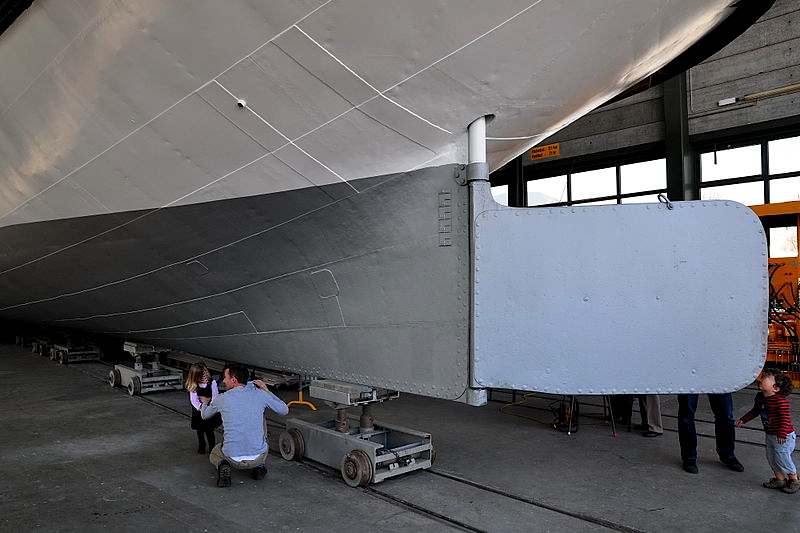

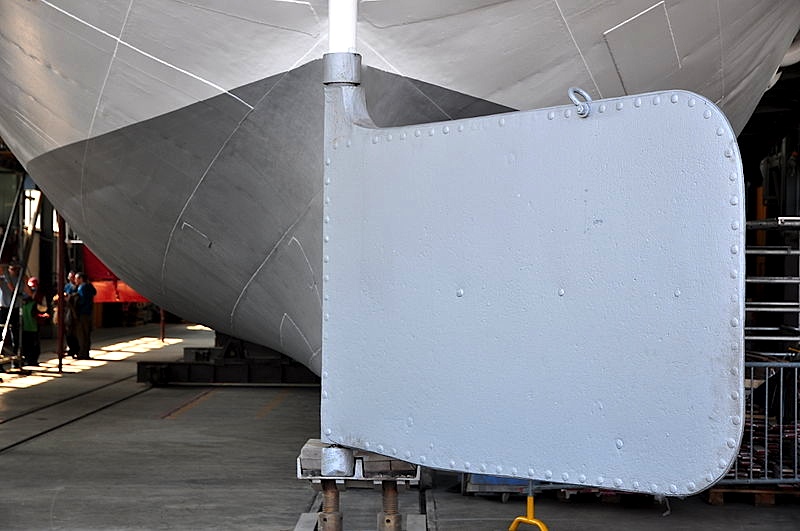

Rudder on a medium-size boat that has no trimtab

How much energy does steering need?

Tank Icon

Whether it is a plane, a car or a ship, large vehicles take more energy to steer than smaller craft. This is why power-assisted steering is fitted to larger cars and SUVs, etc. On a vast tanker, lorry or jumbo-jet, the forces needed to steer the rudder, front wheels, or rudder are significant, and additional energy required may be beyond the strength of an unaided human driver or pilot.

Steering the steering

Toy Truck Articulated
Some steering systems are more complex than others. The logic needed to steer when reversing in an articulated vehicle is of a higher order than driving forward in a two, or four-wheeled vehicle. In this sense it works as a second-order cybernetic system.

Strategic implications

Texts such as Sun Tzu’s The Art of War (6th century BC), and Macchiavelli’s The Prince (1513) are relevant here. The adjective ‘Macchiavellian’ is often used disparagingly, to mean self-serving or exploitative. However, it also describes successful actions for creating low-expenditure change. Most interventions require far less input if it is timed precisely. E.g. Try walking through a swing door at different intervals in its natural cycle - it may either hit you in the face, or allow you to pass without touching you at all. Both Macchiavelli and Sun Tzu offer a discourse that values watchful adaptability. A change that is profound enough to require (or to cause) changes on many other levels (e.g. of the culture) is called a paradigm change
